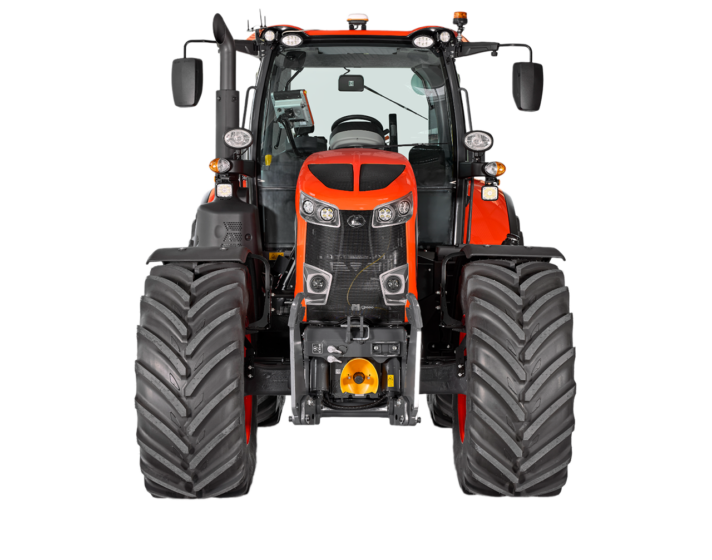

M7134

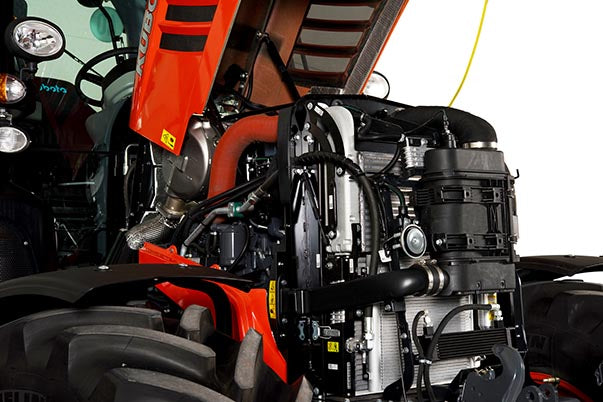

This engine boasts the latest technologies that comply with the Euro 5 emission standards. The electronically controlled Common Rail injection system precisely regulates the timing and quantity of fuel injection in multiple stages to ensure optimal combustion. This results in lower fuel consumption, higher efficiency, and reduced engine noise. The reduction of nitrogen oxides in the exhaust gases, combined with the AdBlue injection system, the diesel particulate filter (DPF), and exhaust gas recirculation (EGR), ensures that the engine meets the strictest emission regulations in place today. Optimal performance and power utilization are supported by the Power Boost system – an automated process that instantly increases the engine’s power output when needed.

KVT (Kubota – Variable Transmission)

This transmission offers a virtually infinite number of forward and reverse speeds, allowing you to operate at the optimal travel speed for any implement. The highly responsive and reliable KVT transmission also has the ability to dynamically brake using the engine, maintaining control of the tractor and ensuring a constant travel speed when descending slopes.

Powershift 6 Speeds × 5 Ranges
The M7004 can also be equipped with Kubota’s simple and reliable Powershift transmission. It is divided into 5 ranges with 6 gears each, providing a total of 30 forward and 15 reverse speeds. Direction changes can be made using the hydraulic reverser lever on the steering column or a joystick button.Some operations cannot be performed within the standard range of working speeds, so the Kubota M7004 can be equipped with creeper or super-low working speeds, increasing the number of gears to 54 forward / 27 reverse. This allows the tractor to reach a minimum speed of 0.45 km/h at 2200 rpm.At 40 km/h, the Eco mode maintains reduced engine speed at 1500 rpm, significantly lowering fuel consumption and reducing noise levels in the cabin.

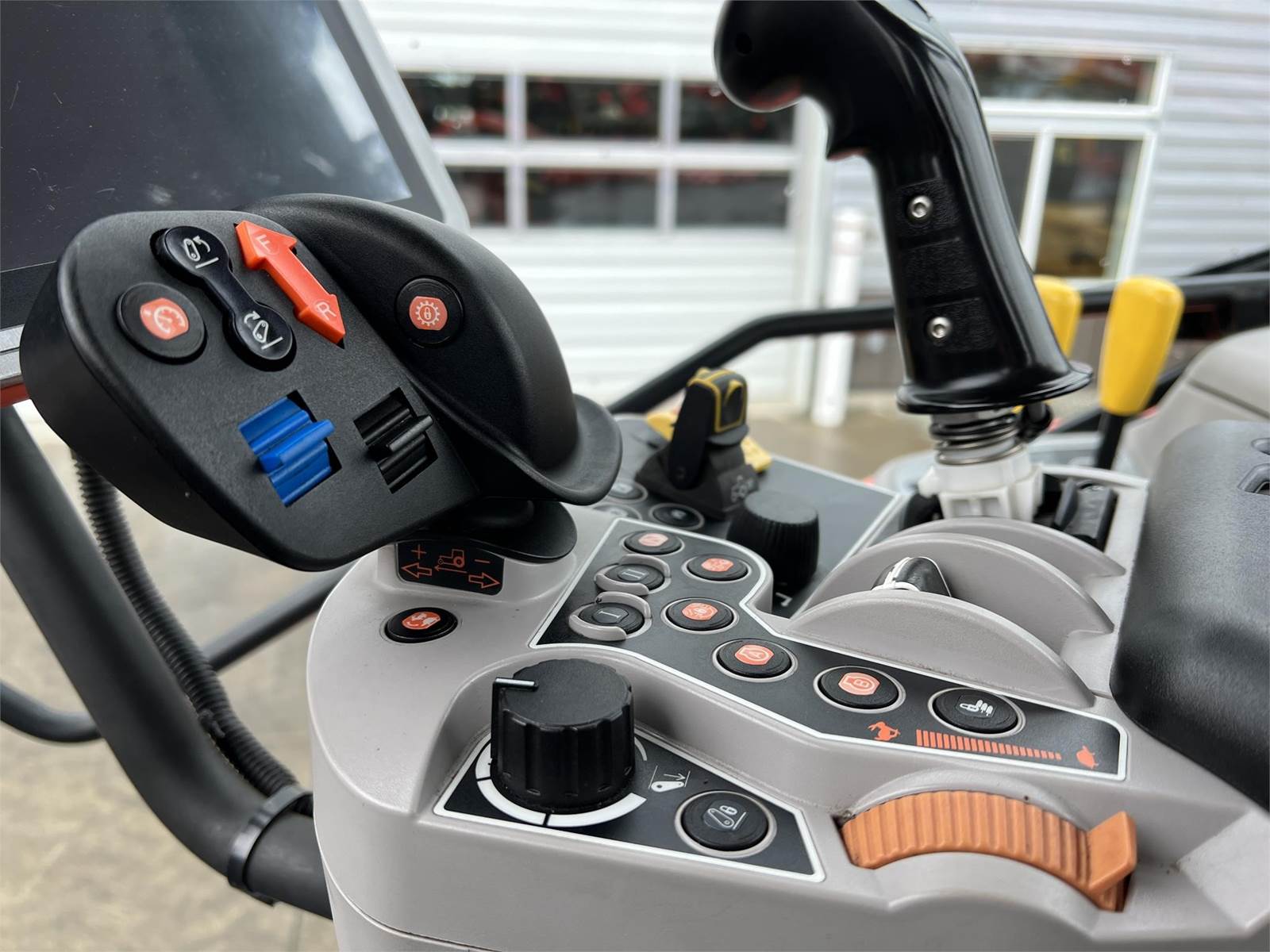

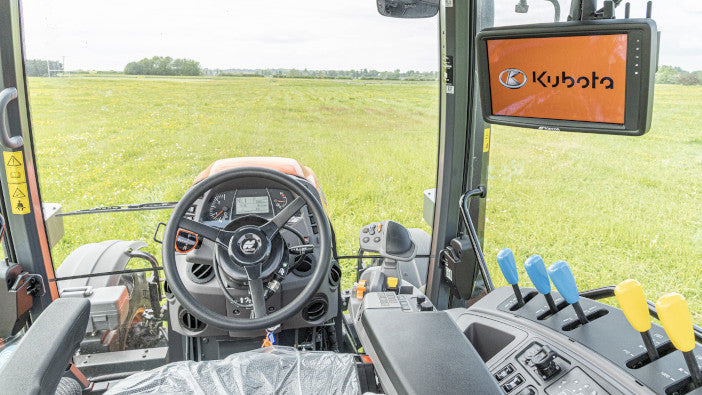

To control more functions with less effort, Kubota has developed a unique multifunctional control armrest that consolidates all the main controls. These can be easily operated with the right hand.

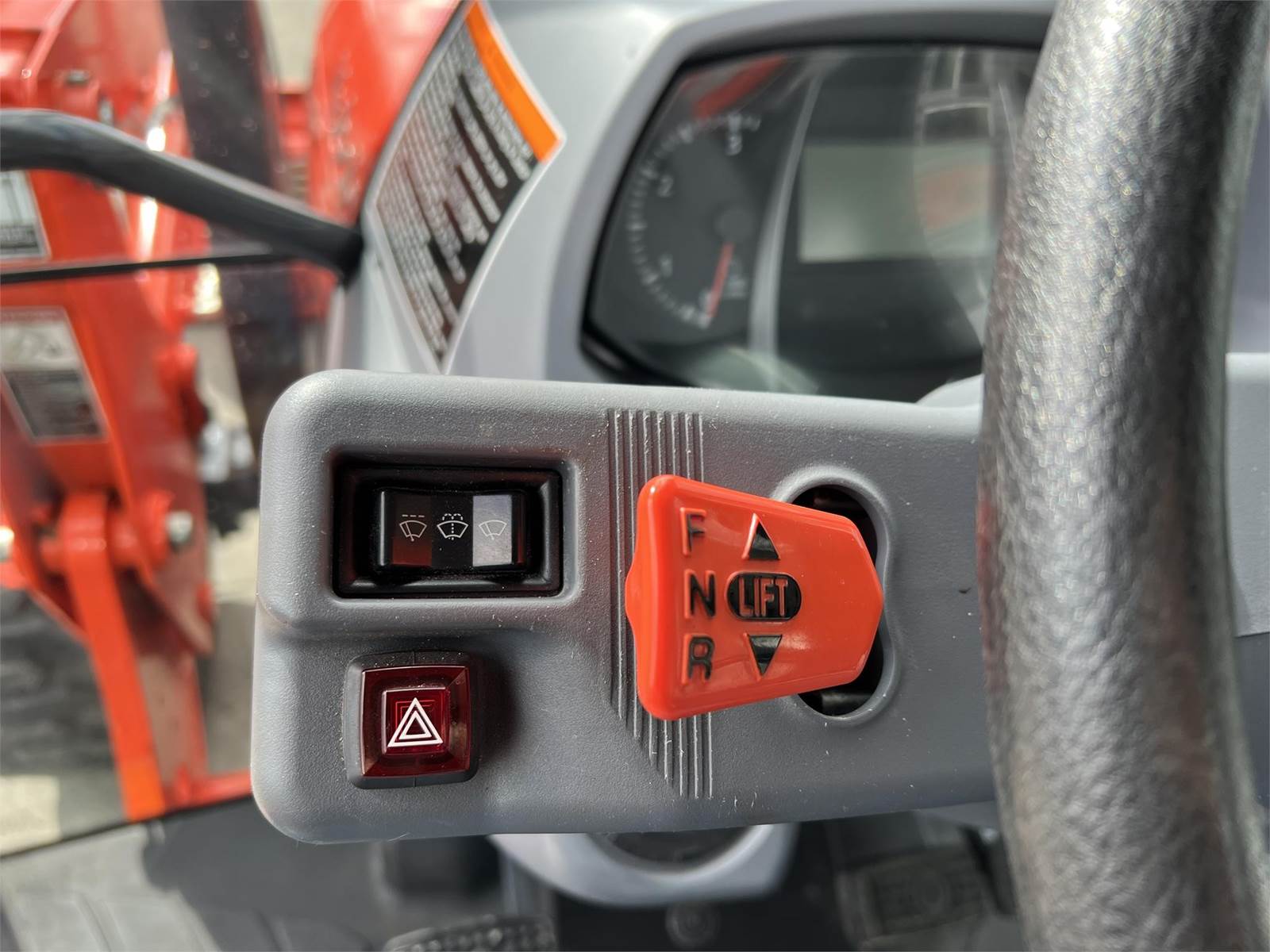

The standard model is equipped with a simple multifunction lever that allows you to change the direction of travel forward and backward, control the differential lock, operate the rear hitch, and more.

Additionally, the Premium models come standard with a 7" or 12" K touchscreen, making it very easy and intuitive to manage not only other tractor functions but also ISOBUS implements.

The M7004 cabin can be suspended either mechanically or pneumatically.

The Kubota M7004 offers 4 standard rear PTO speeds (540/540E/1000/1000E). The ability to quickly select the rear PTO speed provides unlimited versatility for working with various implements.

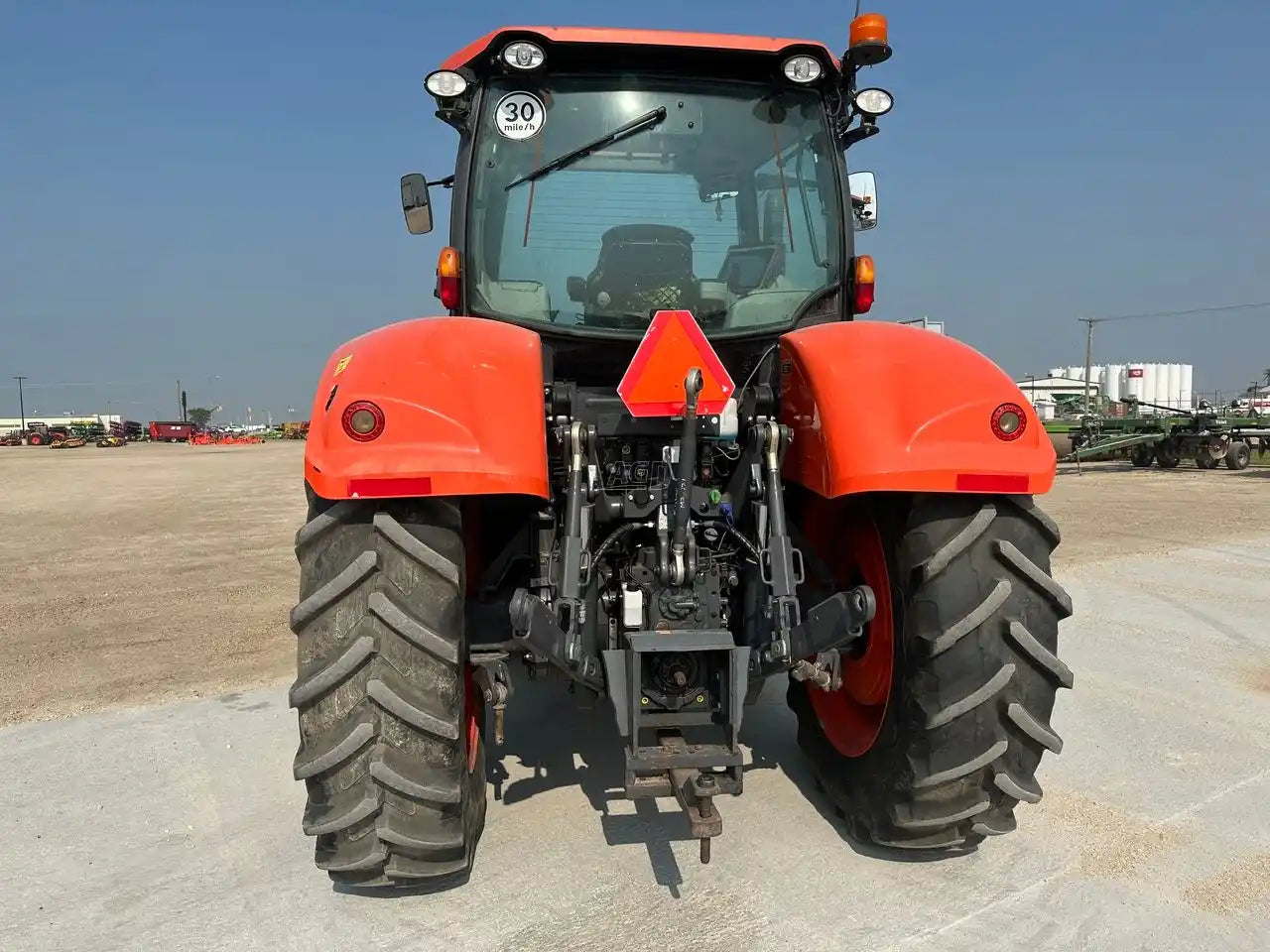

The tractor can also be equipped with a front PTO. The rear Category III three-point hitch offers a high lifting capacity of 9,400 kg, while the front three-point hitch has a lifting capacity of 3,900 kg.

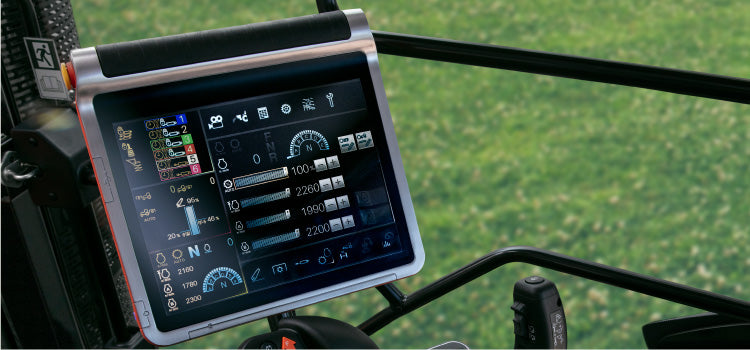

All desired functions of the M7004 are displayed on the large LCD touchscreen. The tractor can be equipped with a 7" or 12" display. Adjustments can be made with simple finger taps.

Tractor control, ISOBUS equipment, and GPS navigation with automatic steering — all are intuitively organized on the panel. There is also a simple option to customize the displayed data.

The M7004 is compatible with any ISOBUS implement. Information from the connected device is displayed on the LCD screen, through which the device can be configured and controlled.

The M7004 control system works with GPS and connected devices via ISOBUS. Compatible implements perform fully automated operations according to a customized program. For example, when reaching the edge of a field, the operator can simply press a button to start a sequence of several operations. The connected implement will automatically stop, lift, turn, and lower again.

This control allows the operator to focus on maneuvering and helps ensure more precise turns and greater work efficiency. There are preset programs for various tasks, but each user can adapt them to their specific needs and save them for future use.

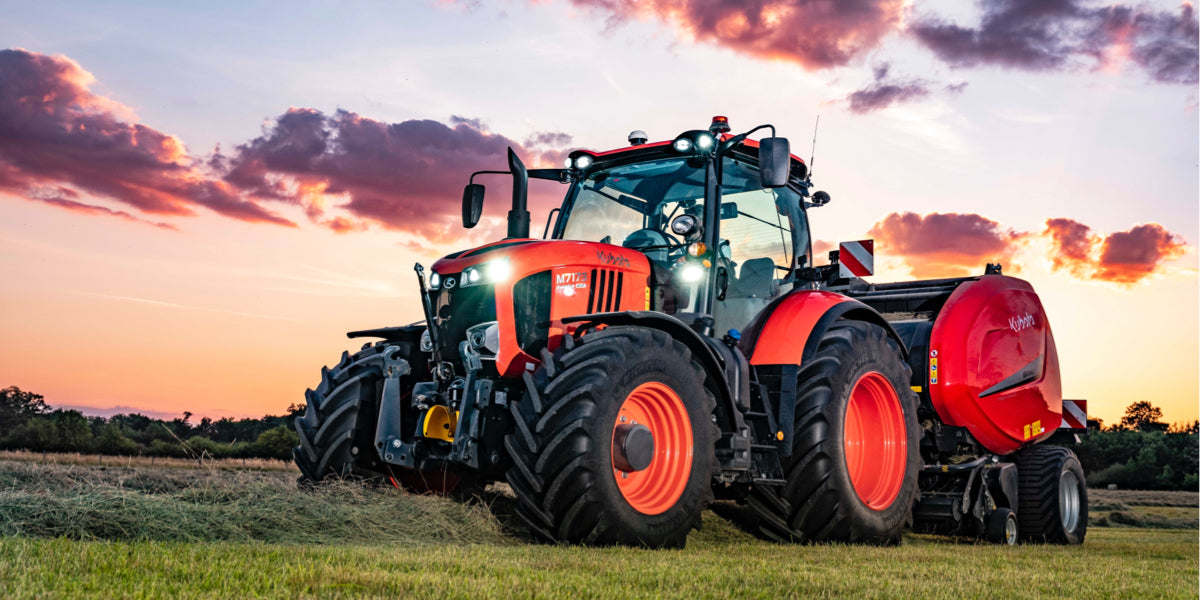

The TIM (Tractor Implement Management) system allows connected equipment to automatically control tractor functions, offering new possibilities in precision farming.

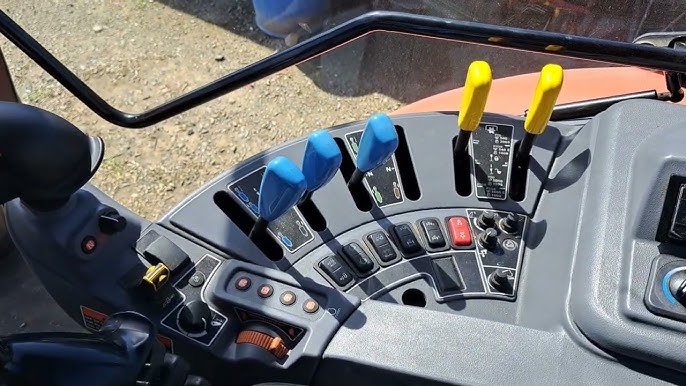

The M7004 Premium model offers premium hydraulics such as CCLS and variable flow, capable of handling multiple functions simultaneously. It features an independent pump with a flow rate of 110 l/min and electronic control of up to 6 hydraulic valves.

The Standard version has an open hydraulic system with a pump flow rate of 80 l/min and mechanical control of up to four hydraulic valves.

The adaptive front axle suspension of the M7004 ensures a comfortable ride. The suspension stiffness can be adjusted manually or automatically at three levels, or locked for special applications.

Multisteer allows you to reduce the number of steering wheel turns from three available options. Thanks to this feature, you are guaranteed maximum comfort and productivity. In particular, operating a front loader becomes much more comfortable and easier.

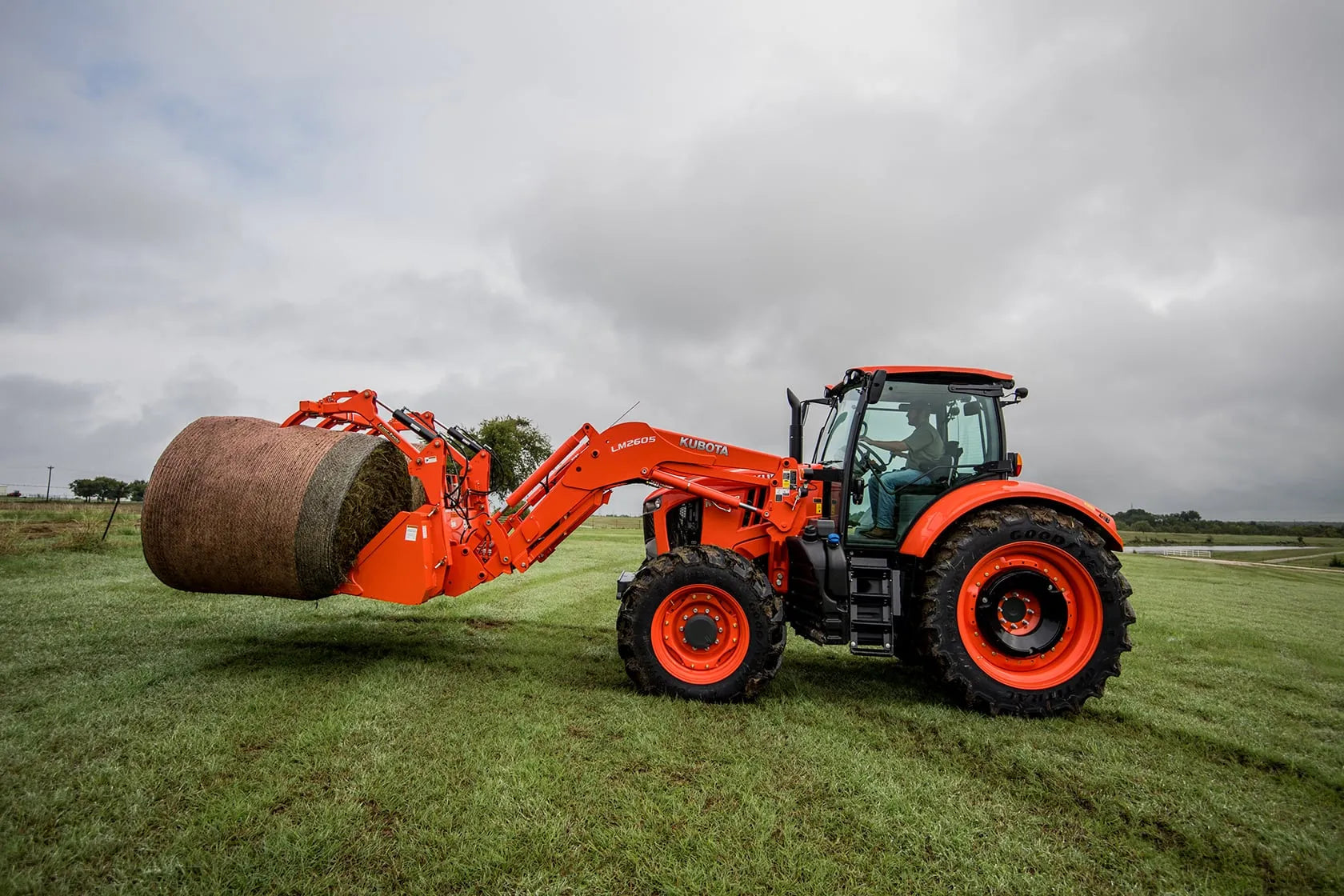

The new LK2100H front loader and the M7134 FL tractor form the perfect combination of an agile tractor and a robust front loader. The M7134 FL comes with three adjustable valves, controlled by a powerful Load Sensing hydraulic pump with a high flow rate of 110 L/min.
