Kubota XTA24

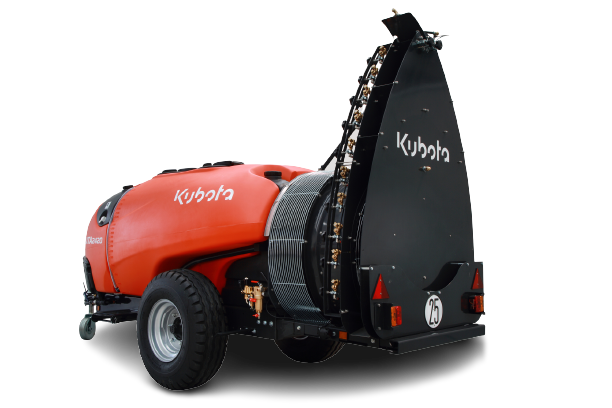

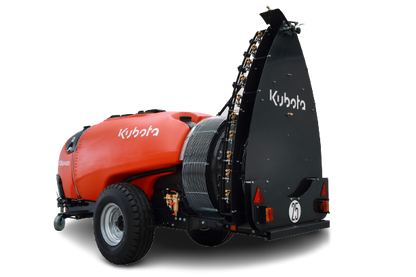

XTA24 Broad-Leaf Crops & Intensive Plantation Sprayer
Specialized Equipment for Homogeneous Broad-Leaf Crop Treatment
The XTA24 is specialized equipment designed for homogeneous treatment of broad-leaf crops. Its innovative air system prevents leaf suction by the fan, facilitating proper operation and reducing damage risk. Additionally, the optional "Column Type" outlet allows application adaptation to intensive plantation structures.
Key Features & Benefits
Superior Efficiency
Homogeneous treatment in high-density plantations. The aerodynamics of the "column type" outlet combined with Qi 9.0 Inverter fan (900mm diameter) allows air volume to remain constant, covering outer and inner tree zones at different heights. Delivers efficient spraying while reducing energy consumption.
Maximum Performance
Delivers maximum air flow power with only 38 HP: fuel savings up to 2 L/hour thanks to the Qi 9.0 air group (900mm diameter) and specially designed PTO gearbox, enabling operation at maximum 480 PTO RPM.
Anti-Leaf Absorption System
The inverted fan design prevents suction of fallen leaves from trees. This system prevents leaf accumulation at the fan air intake, facilitating proper equipment operation and reducing damage risk.
Durability & Longevity
- Polyethylene tank (8mm thickness) reinforced in critical zones (12mm)
- Carbon steel chassis with oven-baked coating, reinforced at structural stress points
- Self-cleaning function for tank and complete spray system ensures extended machine life
Technical Specifications
| Model | Tank Capacity | Width (cm) | Length (cm) | Height (cm) | Weight (kg) |
|---|---|---|---|---|---|
| XTA2410 | 1000L | 136 | 405 | 145 | 807 |
| XTA2415 | 1500L | 150 | 440 | 150 | 875 |
| XTA2420 | 2000L | 158 | 490 | 165 | 980 |
| XTA2430 | 3000L | 210 | 485 | 190 | 1347 |
Performance Specifications
| Feature | Specification |
|---|---|
| Fan Type | Qi 9.0 Inverter |
| Fan Diameter | 900mm |
| Power Requirement | 38 HP minimum |
| Maximum PTO Speed | 480 RPM |
| Fuel Savings | Up to 2 L/hour |
| Tank Material | Polyethylene (8mm, reinforced 12mm) |
| Chassis | Carbon steel, oven-baked coating |
| Special Feature | Anti-leaf absorption system |
Applications
- Broad-leaf crops
- Intensive plantations
- High-density orchards
- Multi-height tree structures
- Professional pest and disease control
Optional Equipment
- "Column Type" outlet for intensive plantation adaptation
Available Tank Capacities: 1000L, 1500L, 2000L, 3000L
Kubota Model Designation System
- X = Sprayer definition in Kubota terminology
- T = Trailed (towed attachment)
- A = Atomizer Definition: "An atomizer is a device that produces a fine spray of liquid"
- 2 = Model range divided by capacity and application
- 4 = Based on air group within model range
- XX = Tank capacity defined with 2 digits
Built to Kubota's exacting standards for reliability, performance, and operator satisfaction.
