Kubota XTA33

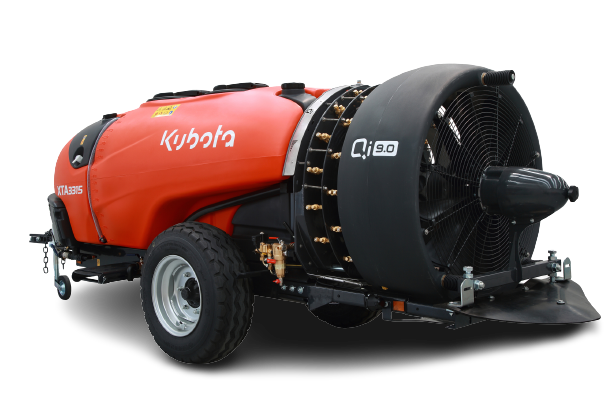

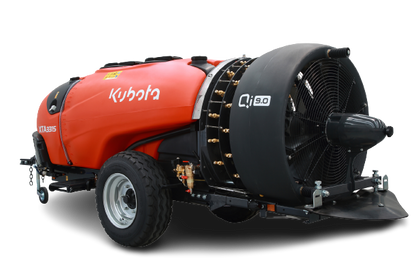

XTA33 Large Orchard Sprayer
High-Class Sprayer for Precision, Efficiency and Performance in Large Fruit Operations
The XTA33 is a high-class sprayer designed for precise, efficient and effective spraying in large fruit operations. Delivers homogeneous external and internal coverage of crops with the highest leaf density for maximum control against pests and diseases.
Key Features & Benefits
Superior Efficiency
Intensive and homogeneous coverage reaching all areas in the densest crops. Equipped with Futur Qi 9.0 group (900mm diameter) featuring 26 double nozzles in two lines, capable of achieving air volume of 81,000 m³/h.
Maximum Performance
Delivers maximum air flow power with only 38 HP: fuel savings up to 2 L/hour thanks to the Futur Qi 9.0 air group (900mm diameter) and specially designed PTO gearbox, enabling operation at maximum 480 PTO RPM.
Durability & Longevity
- Polyethylene tank (8mm thickness) reinforced in critical zones (12mm)
- Carbon steel chassis with oven-baked coating, reinforced at structural stress points
- Self-cleaning function for tank and complete spray system ensures extended machine life
H3O Smart System
Advanced intelligence and connectivity package featuring:
- GPS location tracking
- Rapid configuration and work order transmission
- Real-time precision control and alerts
- Detailed spray data visualization and traceability
The web-based Kubota SCP system records and analyzes:
- Machine location and route mapping
- PTO RPM during operation
- Travel speed monitoring
- Application rate tracking
- Pressure monitoring
This enables comprehensive work control and detailed analysis of spray applications, chemical usage, and operational costs broken down by field parcels.
Technical Specifications
| Model | Tank Capacity | Width (cm) | Length (cm) | Height (cm) | Weight (kg) |
|---|---|---|---|---|---|
| XTA3310 | 1000L | 136 | 420 | 145 | 764 |
| XTA3315 | 1500L | 150 | 460 | 150 | 864 |
| XTA3320 | 2000L | 158 | 470 | 165 | 935 |
| XTA3330 | 3000L | 210 | 510 | 190 | 1276 |
| XTA3340 | 4000L | 220 | 510 | 200 | 1452 |
Performance Specifications
| Feature | Specification |
|---|---|
| Fan Type | Futur Qi 9.0 |
| Fan Diameter | 900mm |
| Nozzle Configuration | 26 double nozzles in two lines |
| Air Volume | 81,000 m³/h |
| Power Requirement | 38 HP minimum |
| Maximum PTO Speed | 480 RPM |
| Fuel Savings | Up to 2 L/hour |
| Tank Material | Polyethylene (8mm, reinforced 12mm) |
| Chassis | Carbon steel, oven-baked coating |
Applications
- Fruit trees (all varieties)
- Citrus trees
- Large fruit operations
- High-density orchards
- Dense foliage environments
- Commercial fruit production
Available Tank Capacities: 1000L, 1500L, 2000L, 3000L, 4000L
Kubota Model Designation System
- X = Sprayer definition in Kubota terminology
- T = Trailed (towed attachment)
- A = Atomizer Definition: "An atomizer is a device that produces a fine spray of liquid"
- 3 = Model range divided by capacity and application
- 3 = Based on air group within model range
- XX = Tank capacity defined with 2 digits
Built to Kubota's exacting standards for reliability, performance, and operator satisfaction.
