Kubota XTA63

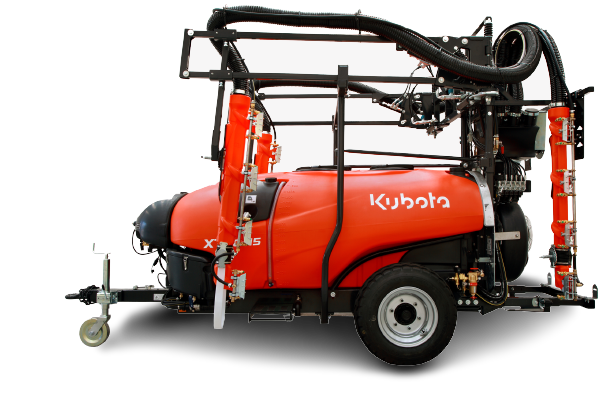

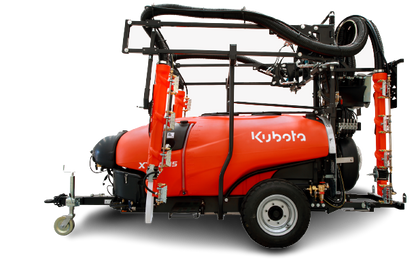

XTA63 Large Vineyard Sprayer
First-Class Sprayer for Intensive Precision Treatments in Large Vineyards
The XTA63 is a first-class sprayer designed for intensive precision treatments in large vineyards. Delivers higher yield and adaptability to vineyard structure for more effective, homogeneous and efficient application against pests and diseases.
Key Features & Benefits
Superior Efficiency
Qi air channeling technology delivers 40% more air volume with the same energy consumption.
Variable hydraulic geometry adapts the sprayer's distribution pipes to vineyard structure. Easy movement and enhanced safety through precise and homogeneous crop coverage.
Durability & Longevity
- Polyethylene tank (8mm thickness) reinforced in critical zones (12mm)
- Carbon steel chassis with oven-baked coating, reinforced at structural stress points
- Self-cleaning function for tank and complete spray system ensures extended machine life
H3O Smart System
Advanced intelligence and connectivity package featuring:
- GPS location tracking
- Rapid configuration and work order transmission
- Real-time precision control and alerts
- Detailed spray data visualization and traceability
The web-based Kubota SCP system records and analyzes:
- Machine location and route mapping
- PTO RPM during operation
- Travel speed monitoring
- Application rate tracking
- Pressure monitoring
This enables comprehensive work control and detailed analysis of spray applications, chemical usage, and operational costs broken down by field parcels.
Technical Specifications
| Model | Tank Capacity | Width (cm) | Length (cm) | Height (cm) | Weight (kg) |
|---|---|---|---|---|---|
| XTA6310 | 1000L | 230 | 378 | 275 | 1140 |
| XTA6315 | 1500L | 230 | 430 | 275 | 1157 |
| XTA6320 | 2000L | 230 | 450 | 275 | 1180 |
| XTA6330 | 3000L | 230 | 465 | 295 | 1535 |
Performance Specifications
| Feature | Specification |
|---|---|
| Air Technology | Qi air channeling system |
| Air Volume Increase | 40% more with same energy consumption |
| Hydraulic Geometry | Variable for vineyard adaptation |
| Tank Material | Polyethylene (8mm, reinforced 12mm) |
| Chassis | Carbon steel, oven-baked coating |
| Special Feature | Adaptive distribution pipes |
Applications
- Vineyards
- Large-scale grape cultivation
- Commercial wine production
- Professional pest and disease control
- Variable vineyard structures
Available Tank Capacities: 1000L, 1500L, 2000L, 3000L
Kubota Model Designation System
- X = Sprayer definition in Kubota terminology
- T = Trailed (towed attachment)
- A = Atomizer Definition: "An atomizer is a device that produces a fine spray of liquid"
- 6 = Model range divided by capacity and application
- 3 = Based on air group within model range
- XX = Tank capacity defined with 2 digits
Built to Kubota's exacting standards for reliability, performance, and operator satisfaction.
